antennas

Diamond V2000

50 /144 /430MHz (6m /2m /70cm)
Length: 2.5m
Weight: 1.2kg
Gain: 2.15dB (50MHz), 6.2dB (144MHz), 8.4dB (430MHz)
Max.power rating: 150W FM
Impedance: 50ohms
Rated wind velocity: 50m/s
Type: 1/2 wave C-Load (50MHz), 2x5/8 wave C-Load (144MHz), 4x5/8 wave C-Load (430MHz)

DIAMOND X-50

Length: 1.7 m
Radial Length: approx.19 cm
Weight: 0.9kg
Gain: 4.5 dB (144 MHz) ,7.2 dB (430 MHz)
Max.power rating: 200 Watt FM (Total)
Impedance: 50 Ohms
VSWR: Less than 1.5:1
Type: 6/8 wave C-Load (144 MHz) ,3 x 5/8 wave C-Load(430MHz)

3 Band End Fed HF

HyEndFed 3 band for 40, 20,& 10 meter.
Max. Power : 200 watt PEP.
Length : 12 meter.
SO239 Connector : Silverplated.
All hardware Stainless steel.
No Tuner needed
This antenna has a coil in the antenna wire

This Antenna is Home Brew, see my Project Pages

5 Band End Fed HF

This antenna is a compromis for people who can’t put up big Antennas. But it is working FINE for me.

End Fed 5 band for 80, 40, 20, 15, 10 meter band.
Max. Power : 200 watt PEP.
Length : 23 meter
This antenna has 1 coil in the antenna wire
Excellent radiation efficiency due resonant design and low loss parts.
4 to 6db better on 40 as the much shorter 3 band design
Loss in Matching unit < 0,8dB on 10mtr < 1,5db

This Antenna is Home Brew, see my Project Pages

OPEK HVT 400 - Camper

The Opek HVT-400B is the economical solution to HF/VHF operation. To change the operation band you simply move the jumper.

Bands: 80, 40, 20, 15, 10, 6 , 2, & 0.7 meters
Power capacity is 120 watts.
The base of the antenna is a male PL259

YAESU ATAS 120A - Camper

Active Tuning Antenne

a unique mobile antenna designed for use with Yaesu's transceivers, such as the FT-897, FT-857, FT-847, FT-100/100D and the FT-450.

It provides 7/14/21/28/50/145/430 Mhz bands coverage with automatic motorised tuning

Hamstick Dipole - Camper

Dipole made out of Hamsticks
7/14 Mhz

Antenna Tuner MFJ 900

This small Antenna Tuner is used in combination with my Home Made WSPR Beacon Transmitter.

Tunes from 1,8 - 30 Mhz
Handles 200 Watt (PEP)

Antenna Tuner LDG AT-100 Pro II

This Automatic Antenna Tuner is used in combination with my Yaesu FT1000mp & Icom 703

Automaticly Tunes from 1,8 - 30 Mhz
Handles SWR 10:1
Handles 125 Watt (PEP)

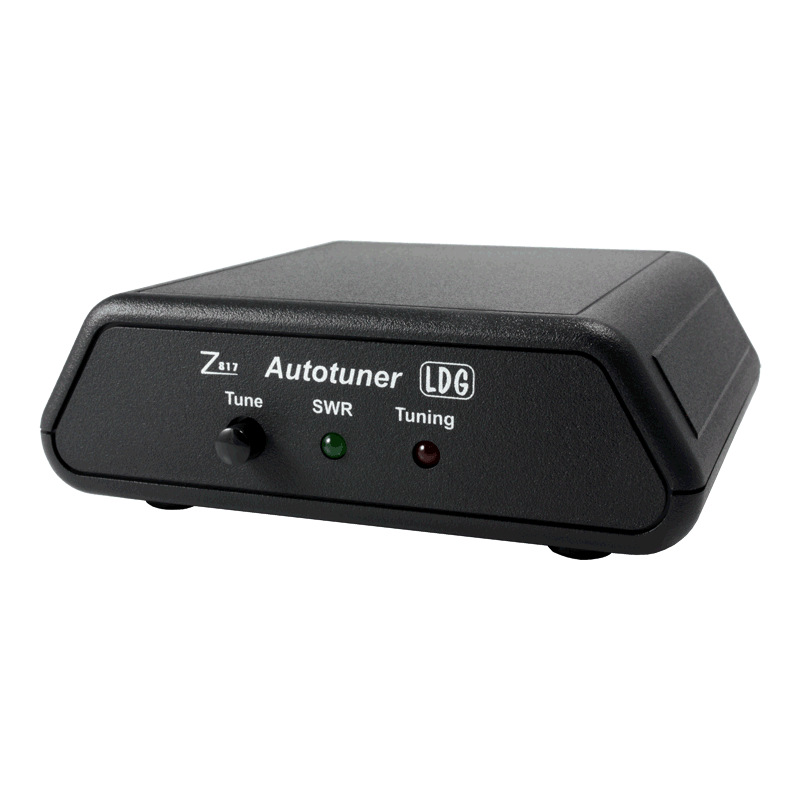

Antenna Tuner LDG Z817

The Z-817 is the ultimate autotuner for QRP radios including the Yaesu FT-817(D). The Z-817 interfaces to the CAT port (ACC) on the back of the FT-817 radio with the cat cable. Tuning could not be simpler; one button push on the tuner is all that is needed and the Z-817 takes care of the rest. It will switch to PKT mode, transmit a carrier, tune the tuner, then restore the radio to the previous mode! 2000 memories cover 160 through 6 meters.

Of course, the Z-817 will also function as a general purpose antenna tuner with other QRP radios. Just transmit a carrier and press the tune button on the tuner. The Z-817 is powered by four AA internal Alkaline batteries , so there are no additional cables required to use the Z-817. Latching relays are used so that power consumption is Zero when not tuning allowing a set of batteries to last about one year.

Technical Data LDG Z-817

RF Power 0.1 to 20 watts SSB, CW and digital modes (Z-817H: 75W)
Latching relays for ultra low power consumption
Battery operated 4 x 1.5V Alkaline AA (not included)
Built-in CAT port interface. CAT thru port for computer connection.
2000 memories when used with FT-817 interface (200 memories for other radios)
1.8 to 54 MHz coverage
Tunes 6 to 600 Ω (about 10:1 SWR range). 16 to 150Ω on 6m (about 3:1)
SO-239 in and out connections for dipoles, verticals, beams, G5RV, OCF, Cobra, ect.
Dimensions: 120 x 43 x 130 (WHD). Weight: approx. 300g (without batteries).

TIMEWAVE ANC-4 Antenna Noise Canceler

Front-end RF noise canceller for receivers and transceivers, Kills line noise and nulls strong interference.

The ANC-4 is an rf device that eliminates or reduces power line noise, computer noise, TV-generated interference, and other types of electrical noise. The ANC-4 unit connects right to the antenna connector of the receiver or transceiver to cancel locally generated noise before it gets into the receiver and affects the receiver AGC circuits. Reception of signals well below the noise level of the local interference is possible.

To cancel locally generated interference, the ANC-4 detects the interfering signal and adjusts its phase and magnitude so that it matches the offending interference at the receiver input, but is 180 degrees out of phase, effectively cancelling the interference. This scheme is particularly effective at reducing local power line noise or other locally generated noise types.

Front panel controls allow adjustment of both the phase and magnitude of the local interference, providing extremely deep cancellation of the offending interference.

The ANC-4 connects between the main station antenna and the receiver antenna connector. A second antenna connects to the ANC-4 to act as a noise pickup antenna. A short wire antenna or a short collapsible whip is generally satisfactory for eliminating noises generated around the operating position or in the house, but an external antenna usually works better to eliminate noises generated outside the home. Any noise antenna that works, including combinations of horizontal and vertically polarized antennas, is satisfactory.

The ANC-4 operates as an active antenna by using the noise antenna and the NOISE GAIN control to amplify the antenna output. The unit can also be used as a diversity combiner to peak weak signals or null interfering signals.

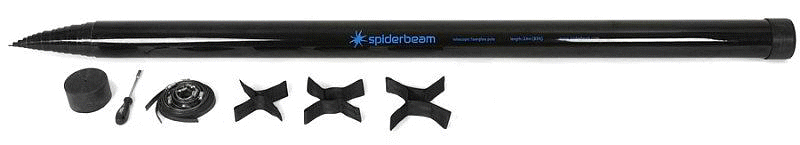

Spiderbeam 12 Mtr Fiberglass mast

12 meter mast for field use and camping

fully extracted length (height) 12m (40ft)
transportation length 1.18m (3ft 10")
weight 3.3kg (7lbs)
bottom diameter 55mm (2 1/6")
top diameter 8mm (1/3")
wall thickness 1.4mm - 2mm
number of segments 12
pole material black fiberglass, UV protected specially reinforced multilayer winding

MFJ-2100 Octopus Antenna

Head with 4 times Dipole made of Hamsticks
